Solar Powered Wind Monitoring

Beta testers and business partners searched. Contact:

The EEPROM recorder is addressing the need for a low cost high performance and very robust wind measurements. This is a need for small scale wind power deployment. Small scale wind power is already a volume market most likely it will continue to grow.

Wind speed is crucial to pay off wind power investments and is the most critical factor for wind power deployment. The wind power is proportional to cubic factor of the wind speed. See:

The design goal for this project is to be high and enough quality but still cheap enough to address the need for small scale wind power. It's an impossible equation to spend lots of money just to get an idea about wind potential. Still wind data is crucial the design and implementation process.

Key features

System components

Basic functions

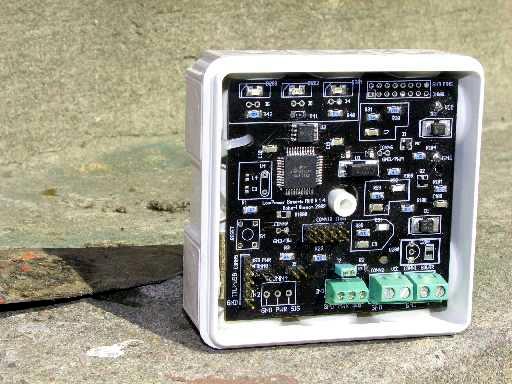

The logger collects and processes the wind data from a anemometer and stores this in the EEPROM memory. The logger has it's own real-time clock which should be accurate within some minutes per year. The logger also has an integrated charge controller under software control and can use solar panel to charge the two NiMH AA cells. Connection is done via USB via a special cable and the collected the data is transferred to a host computer for further analysis.

Logger format

SMHI logger REF[SHMHI] is designed be compact representation and should be easy to understand and export for deeper analysis and Wind Turbine selection.

Logger connections



The logger is equipped with three very lowpower LED's that indicates the logger status

Via LED (from outside inspection)


See command summary.

Trouble shooting Roadmap

API for data collection and monitoring via USB

The logger can be used with serial port over USB. To log or monitor data directly to an attached computer. The communication follows an API as today of revision 1.2. Communication can be done with program's tty_talk (linux) open source. Latest API Revison

Firmware commands

Expert mode. To be written.

Anemometer calibration

It's recommended to calibrate the anemometer as it's are a very crucial part of measurement system. Normally this is a very expensive operation. Requiring a wind-tunnel. An cheap alternative might be calibration with a good GPS and the anemometer mounted on the car roof. It's need to mounted so turbulence from car does affect the measurement. Also of course there should be no wind besides the speed-wind.

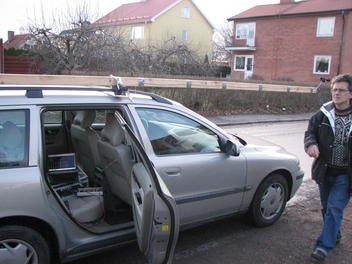

Car calibration anemometer mounting proposed by Pekka Kumpula

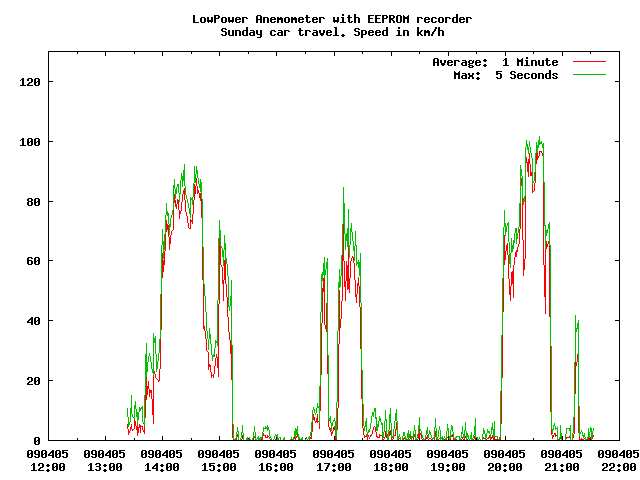

Logging speed on high-way

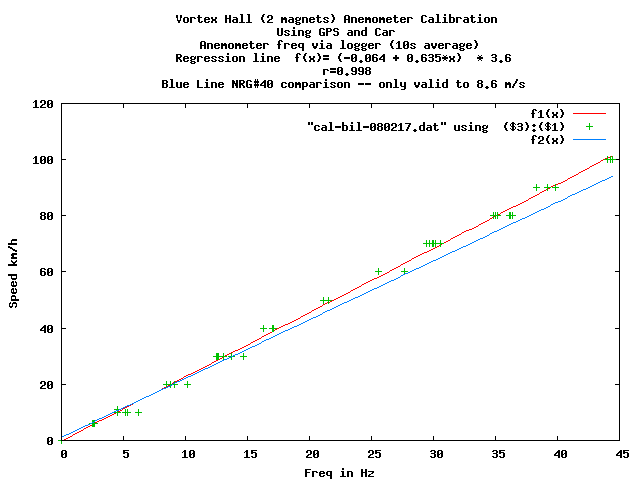

Statistical analyses to get anemometers transfer function

Low-Cost Anemometer Efforts

Also to mentioned is many years of work to get a anemometer to match price and performance needs to match price and measurement accuracy for small scale wind-power. A compromise was to rework and improve bearing etc of existing American anemometer and also equip the anemometer with Hall Element sensors. The anemometer is servicable and can bushrings and bearings can be repalced. Link to a stress test

UPDATE --- It didn't work out. HALL element can't keep up with frequency. A new ultra low power version of the anemomter is under test. New Low-Power body w. PCB

References and other resources

NRG systems have some useful guidelines for lightning protection.

NRG makes very good anemometers but cannot match our low-power and low-cost needs.

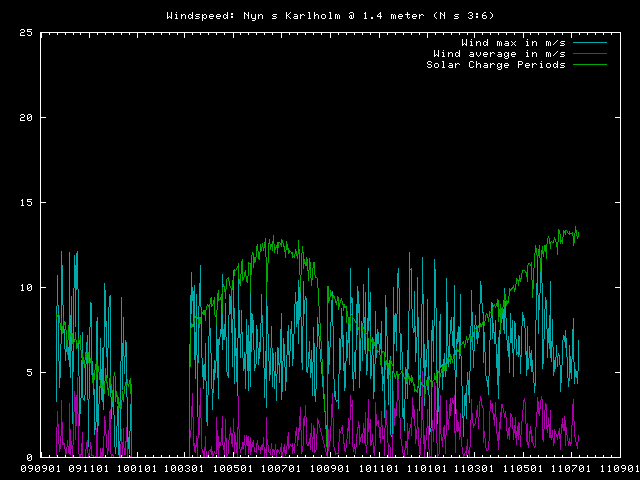

Wind Measuremets using Low-Power logger. Average and Max Plotted. I'm happy I didn't buy a wind tubine without measuring

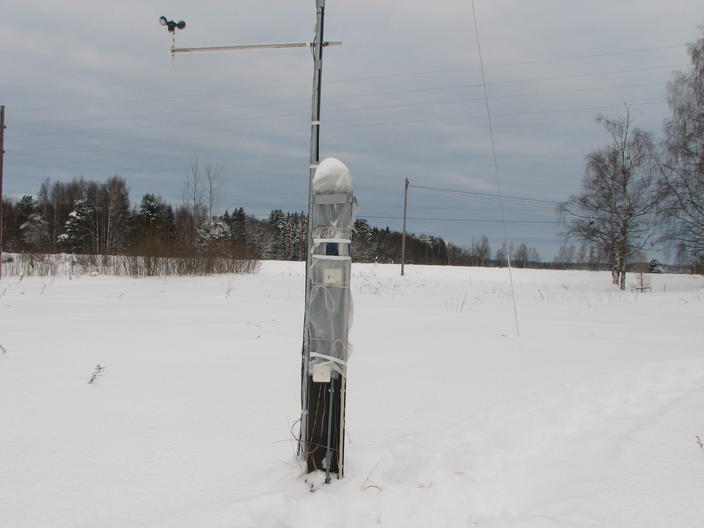

Site Installation Example

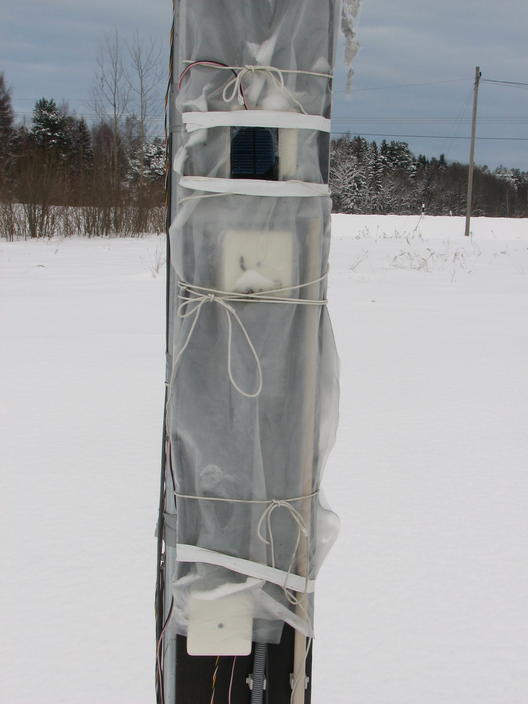

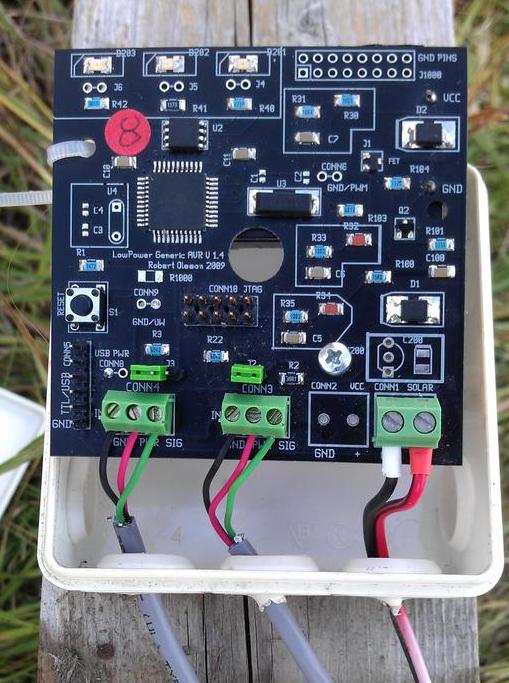

Installation close-up. Note the small solar panel (top). Logger (bottom) is partly covered plastic to make it easy to open and connect the USB-cable and tap wind data via a laptop even during the measurement period.

Testing at Uppsala University meteorological site in Marsta

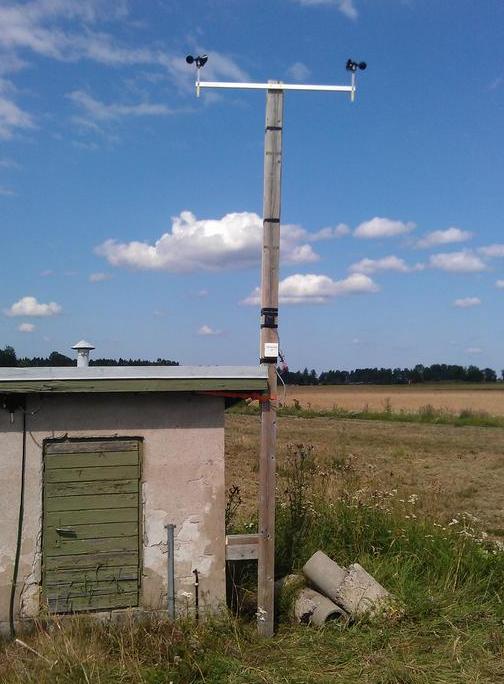

Dual anemometer installation. Note the small solar panel on the "mast".

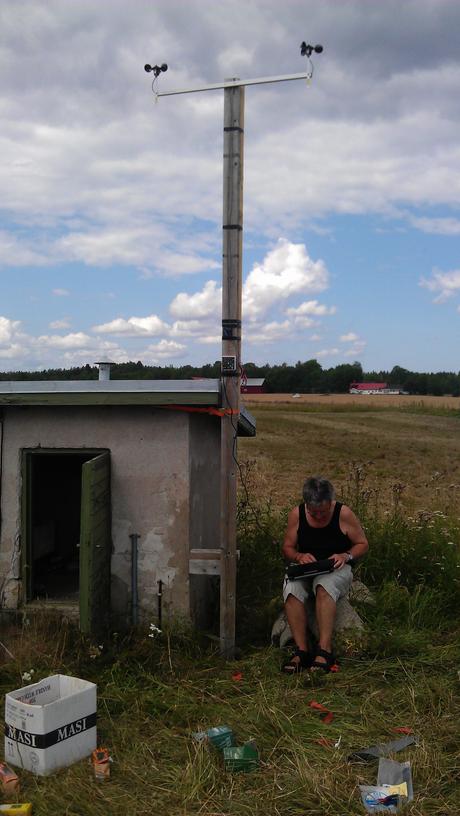

Logger checking via laptop. Note the small solar panel.

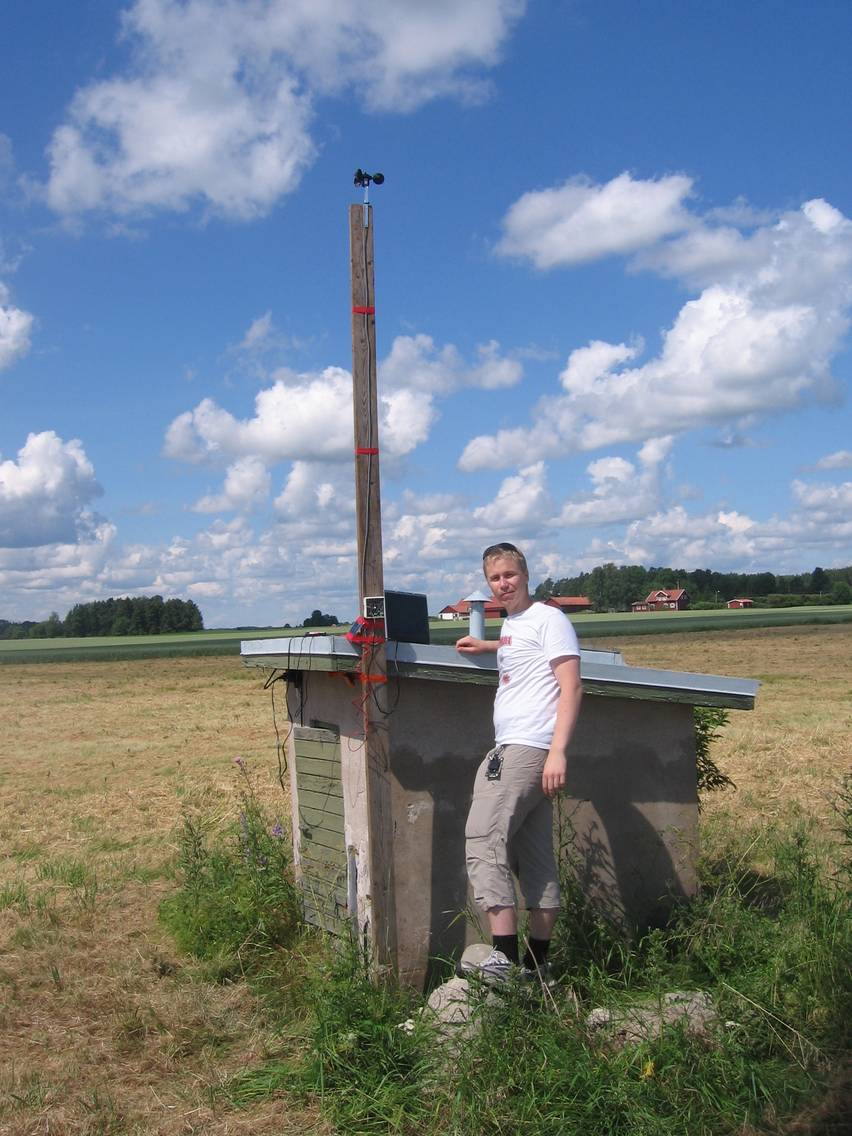

Jon Kjellin Uppsala University.

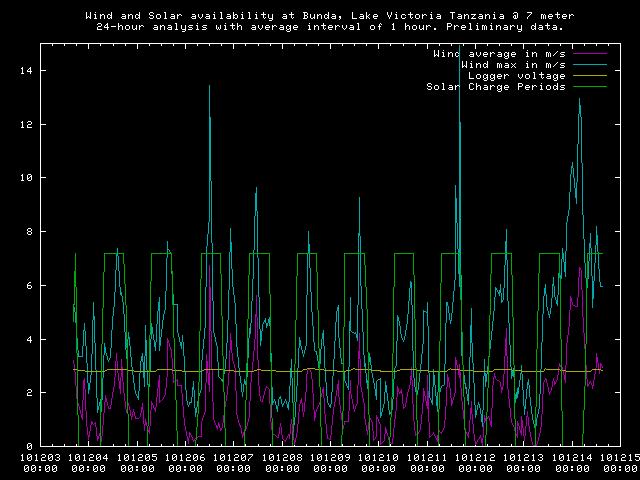

24h wind analysies of data from Bunda, N. Tanzania close to lake Victoria.

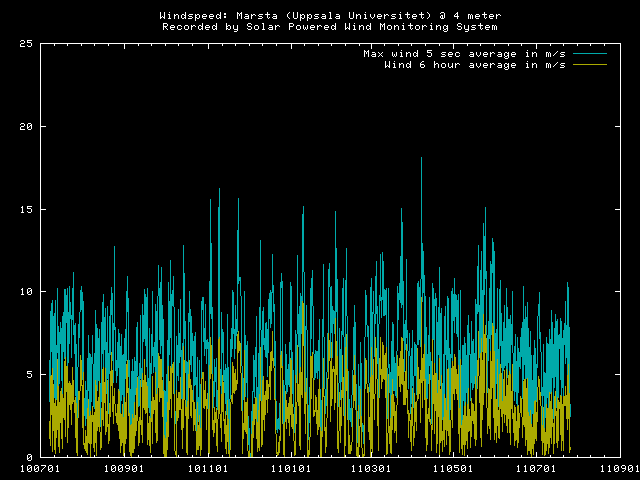

Marsta wind plot over 389 days.
